Dinky™ (DK)

USA Select DK24 HSS 2PT CM QM
2839413798 / Autumn Glow
USA Select DK24 HSS 2PT CM QM
2839413798 / Autumn Glow

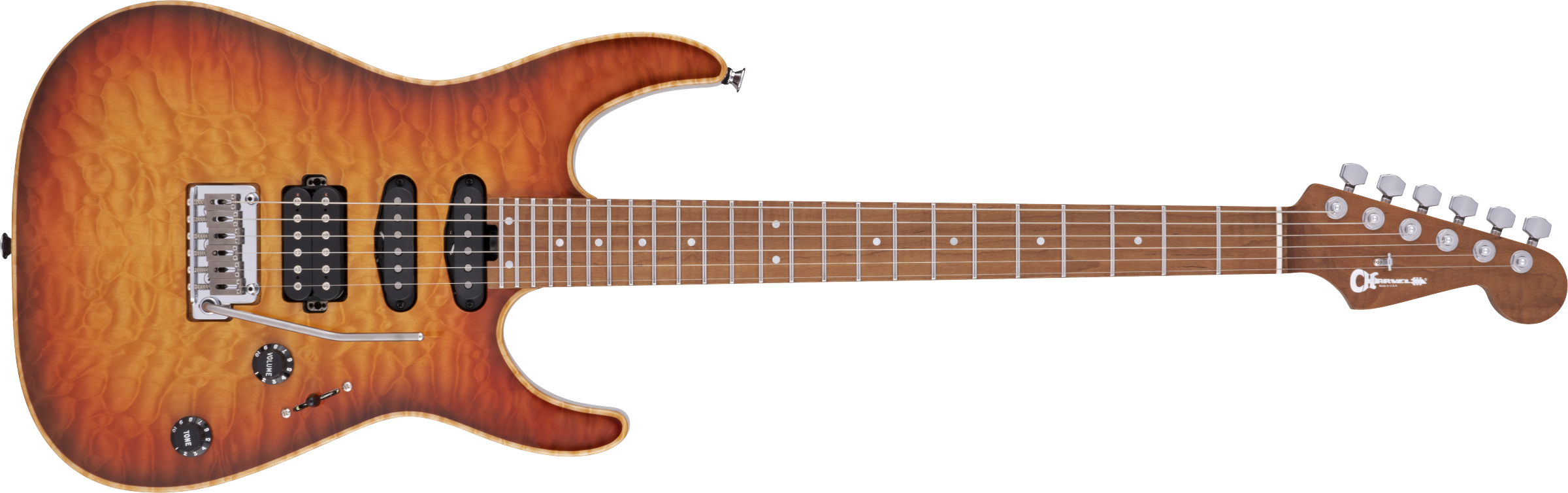

The Charvel USA Select DK24 HSS 2PT CM QM is an exquisite USA-made instrument designed for modern players with discerning tastes. Hearkening back to Charvel’s roots and born on west coast soil, the USA DK24 is meticulously built by the Charvel team at the Custom Shop in Corona, California, so nothing about this high-performance axe is overlooked.

$3,799.99
  • Overview

    The Dinky™ alder body features a rippling quilt maple top and is paired with a bolt-on caramelized maple “speed” neck with graphite reinforcement, sculpted heel and a silky-smooth hand-rubbed urethane back finish for comfortable playability. The back of the body features a scalloped lower back bout that works in tandem with the shredder’s cut heel to allow for easy upper fretboard access.

    Built for highly-technical playing, its 12”-16” compound radius caramelized maple fingerboard features comfortable rolled edges, 24 stainless steel jumbo frets, pearl dot inlays and a Graph Tech® TUSQ® XL nut. Luminlay® side dots provide fretboard guidance even on the darkest of stages, while a heel-mount truss rod adjustment wheel makes for quick and painless neck relief tweaks.

    An HSS pickup configuration consisting of a custom Seymour Duncan® Full Shred™ SH-10B bridge pickup, Seymour Duncan Custom Flat Strat® SSL-6 single-coil middle pickup and Seymour Duncan Custom Flat Strat SSL-6 RWRP single-coil neck pickup proves to be a versatile tonal force with beefed up mids and articulated, crispy highs.

    Other premium modern features include a five-way blade switch, Stratocaster®-style skirt knobs for the volume (with 500K EVH® Bourns® low friction potentiometer) and no-load tone controls, Gotoh® Custom 510 recessed tremolo bridge with titanium saddles and thick brass block, USA-made Sperzel® locking tuners, and more.

    Sporting sophisticated style, sound and craftmanship, the USA Select DK24 HSS 2PT CM QM is available in Autumn Glow or Blue Burst with masked-off natural binding chrome hardware.

  • Features
    Alder Dinky™ Body with Quilt Maple Top
    12"-16" Compound Radius Caramelized Maple Fingerboard
    Scalloped Lower Back Bout
    Beveled Output Jack
    Shredder's Cut Heel
    Sperzel® Die-Cast Tuning Machines
    Seymour Duncan® Custom Full Shred™ SH-10B bridge, Seymour Duncan® Custom Flat Strat® SSL-6 Single-Coil middle & Seymour Duncan® Custom Flat Strat® SSL-6 RWRP Single-Coil neck pickups
    Luminlay® Side Dots
    Heel-Mount Truss Rod Adjustment Wheel
    Gotoh® Custom 510 Recessed Tremolo Bridge with Titanium Saddles and Thick Brass Block
  • Specs
    General
    Model Number 2839413798
    Est. U.S. Street $3,799.99
    Series Charvel Select
    Color Autumn Glow
    Number of Strings 6
    Orientation Right-Hand
    Electronics
    Bridge Pickup Custom Seymour Duncan® Full Shred™ SH-10B
    Middle Pickup Seymour Duncan® Custom Flat Strat® SSL-6 Single-Coil
    Neck Pickup Seymour Duncan® Custom Flat Strat® SSL-6 RWRP Single-Coil
    Controls Volume (with 500K EVH® Bourns® Low Friction Potentiometer), No-Load Tone
    Pickup Switching 5-Position Blade: Position 1. Bridge Pickup, Position 2. Inner Coil of Bridge and Middle Pickup, Position 3. Neck and Bridge Outer Coil, Position 4. Neck and Middle Pickup, Position 5. Neck Pickup
    Pickup Configuration HSS
    Body
    Body Finish Gloss
    Body Shape Dinky™
    Body Material Alder
    Body Binding Masked-Off Natural
    Body Top Quilt Maple
    Hardware
    Bridge Gotoh® Custom 510 Tremolo Bridge with Brass Block and Titanium Saddles
    Hardware Finish Chrome
    Tuning Machines Sperzel® Die-Cast Locking
    Pickguard None
    Control Knobs Stratocaster®-Style Skirt
    Switch Tip Black
    Neck
    Neck Material Caramelized Flame Maple
    Neck Construction Bolt-On with Graphite Reinforcement
    Neck Finish Hand-Rubbed Urethane
    Neck Shape Speed Neck with Rolled Fingerboard Edges
    Neck Binding None - Rolled Fingerboard Edges
    Scale Length 25.5" (648 mm)
    Fingerboard Radius 12"-16" Compound Radius (304.8 mm to 406.4 mm)
    Fingerboard Material Caramelized Flame Maple
    Number of Frets 24
    Fret Size Jumbo Stainless Steel
    Nut Width 1.6875" (42.86 mm)
    Position Inlays 4mm Pearloid Dot
    Truss Rod Nut Heel-Mount Truss Rod Adjustment Wheel
    Headstock Licensed Fender® Stratocaster®
    Neck Plate 4-Bolt Sculpted Heel
    Miscellaneous
    Strings Nickel Plated Steel (.009-.042 Gauges)
