San Dimas Style 1

Pro-Mod San Dimas® Style 1 HH FR E Ash
2975001521 / Neon Pink Ash
Pro-Mod San Dimas® Style 1 HH FR E Ash
2975001521 / Neon Pink Ash

The Pro-Mod Series continues upon Charvel's storied legacy of innovative excellence in high-performance guitar design, offering the latest technology and top-notch features that modern players need. An ideal instrument for dazzling high-speed playing, the Pro-Mod San Dimas® Style 1 HH FR E Ash boasts scorching sound, stunning style and grin-inducing playing feel and performance.

United States of America $1,299.99 MSRP
  • Overview

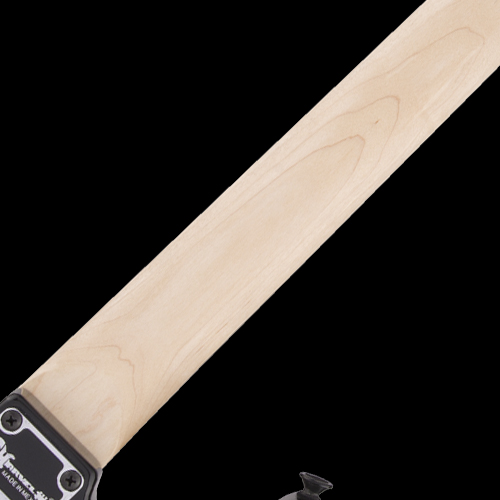

    The San Dimas sandblasted ash body is coupled with a bolt-on maple neck featuring a pair of graphite-reinforcement rods to resist bending and warping under environmental stresses. The speed neck profile is designed for lightning fast playing and completely unhindered position shifts, while the comfortably rolled fingerboard edges provide the broken-in feel of an instrument with plenty of playing miles on it, and plenty more to go. Perfect for faster tempos, the 12"-16" compound radius ebony fingerboard hosts 22 jumbo frets and white dot inlays. For regularly touring musicians, a heel-mount truss rod adjust thumbwheel is a must, allowing for quick and convenient neck relief tweaks.

    This axe features an HH pickup configuration and comes loaded with DiMarzio® Super Distortion® DP100 bridge and DiMarzio PAF Pro® DP151 neck pickups. The bridge pickup is an ideal blend of full lows, defined mids and soaring highs that can handle lead or rhythm playing, while the neck pickup rips with intense mid and high frequencies that pairs well with a high-gain amp.

    Explore this instrument's versatile voice with a three-way pickup blade switch, tone control and a volume control that conceals a push/pull coil split for even more tonal variations on tap. With the Floyd Rose® 1000 Series double-locking tremolo bridge system, you can also dive to rumbling depths or add a well-placed rising harmonic without sacrificing your tuning.

    Destined for center stage­­, the Pro San Dimas Style 1 HH FR E Ash comes in a grain-filled shocking Neon Pink Ash finish with pink pickup bobbins, black hardware and a licensed Fender® Strat® headstock.
  • Features
    Ash Body
    Bolt-on Maple Neck with Graphite Reinforcement
    12"-16" Compound Radius Ebony Fingerboard
    Unique Charvel Back Neckshape
    Direct Mount DiMarzio Super Distortion® DP100 (Bridge) & PAF Pro® DP151 (Neck) Pickups
    3-Way Blade, Push/Pull Volume & No-Load Tone Controls
    Heel-Mount Truss Rod Adjustment Wheel
    Floyd Rose® 1000 Series Double-Locking Tremolo Bridge System
  • Specs
    General
    Model Number 2975001521
    Series Pro-Mod
    Color Neon Pink Ash
    Number of Strings 6
    Orientation Right-Hand
    Electronics
    Bridge Pickup DiMarzio® Super Distortion® DP100
    Neck Pickup DiMarzio® PAF Pro® DP151
    Pickup Color Pink
    Controls Volume (Push/Pull Coil Split), Tone
    Pickup Switching 3-Position Blade: Position 1. Bridge Pickup, Position 2. Both Inner Coils, Position 3. Neck Pickup - (Split Engaged) - Position 1. Bridge Outer Coil, Position 2. Both Outer Coils, Position 3. Neck Outer Coil
    Pickup Configuration HH
    Body
    Body Finish Satin
    Body Shape San Dimas® Style 1
    Body Material Ash
    Hardware
    Bridge Floyd Rose® 1000 Series Double-Locking Tremolo (Recessed)
    Hardware Finish Black
    Tremolo Arm Floyd Rose® 1000 Series Locking
    Tuning Machines Charvel®-Branded Die-Cast
    Pickguard None
    Control Knobs Metal Dome
    Switch Tip Black
    Saddle Height Wrench N/A
    Neck
    Neck Material Maple
    Neck Construction Bolt-On with Graphite Reinforcement
    Neck Finish Satin
    Neck Shape Speed Neck with Rolled Fingerboard Edges
    Neck Binding None - Rolled Fingerboard Edges
    Scale Length 25.5" (64.77 cm)
    Fingerboard Radius 12"-16" Compound Radius (304.8 mm to 406.4 mm)
    Fingerboard Material Ebony
    Number of Frets 22
    Fret Size Jumbo
    Nut Material Floyd Rose® 1000 Series Locking
    Nut Width 1.6875" (42.86 mm)
    Position Inlays White Dot
    Side Dots White
    Truss Rod Nut Heel-Mount Truss Rod Adjustment Wheel
    String Trees Floyd Rose® Retainer Bar
    Headstock Licensed Fender® Stratocaster®
    Neck Plate 4-Bolt Serialized
    Miscellaneous
    Strings Nickel Plated Steel (.009-.042 Gauges)
    Strap Buttons Standard
    Case/Gig Bag Optional Charvel® Style 1/2 Economy Case (p/n 099-0612-100); Optional Charvel® Multi-Fit Gig Bag (p/n 299-1414-006)
  • Pickup Switching
