San Dimas Style 1

American Neo-Classic San Dimas® Style 1 SD1 HH FR MPL
2865041803 / Gloss Black
New
American Neo-Classic San Dimas® Style 1 SD1 HH FR MPL
2865041803 / Gloss Black

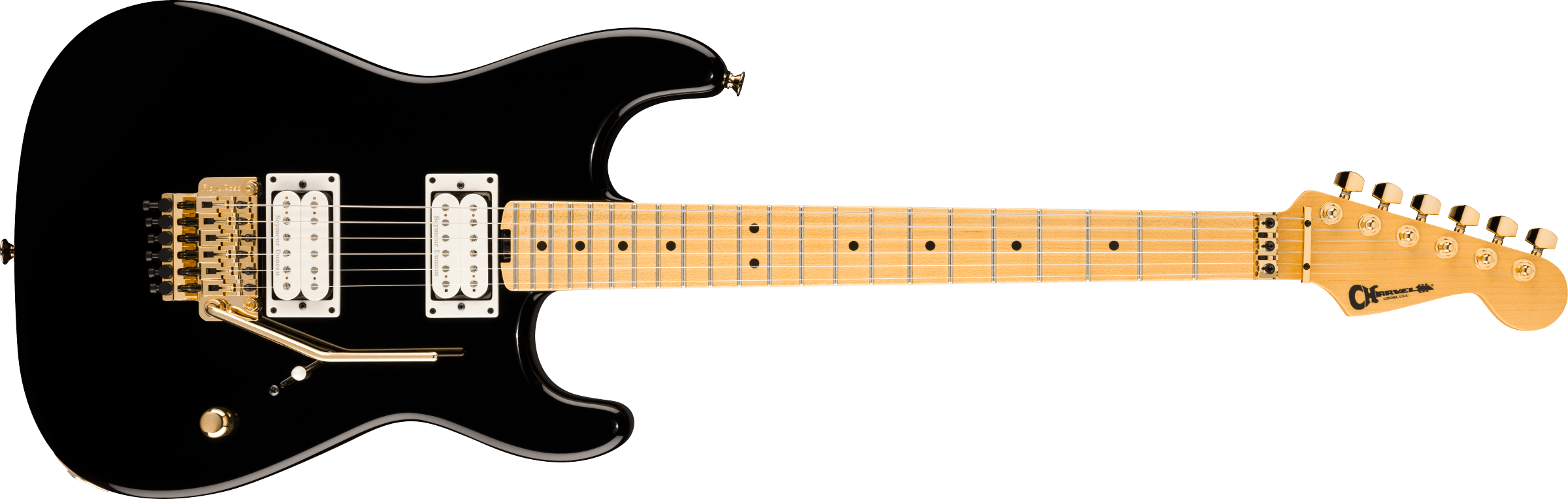

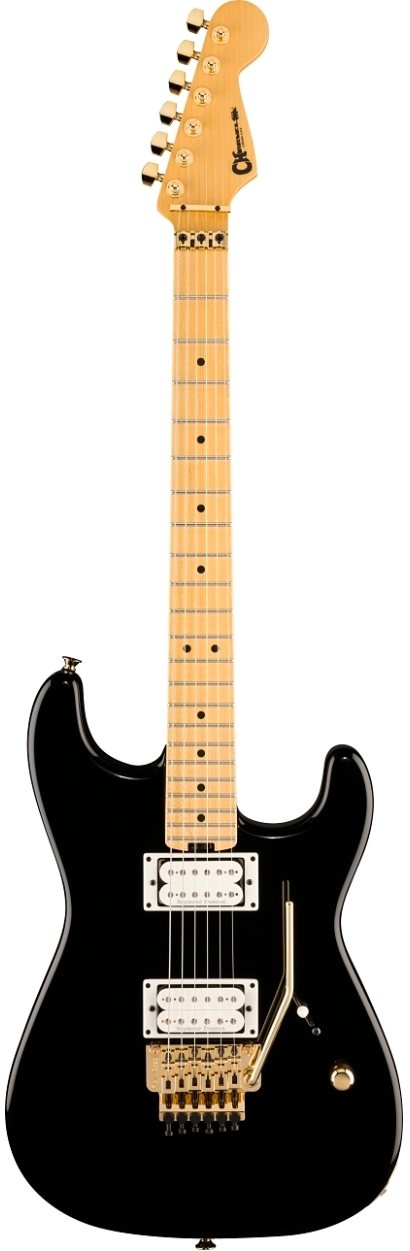

The Charvel American Neo-Classic Series San Dimas® Style 1 delivers the perfect fusion of iconic design and cutting-edge innovation. The alder San Dimas body has been a Charvel staple since the early eighties, providing balanced tonal response and natural resonance with warm midrange punch and crisp high-end clarity that cuts through any mix with authority.

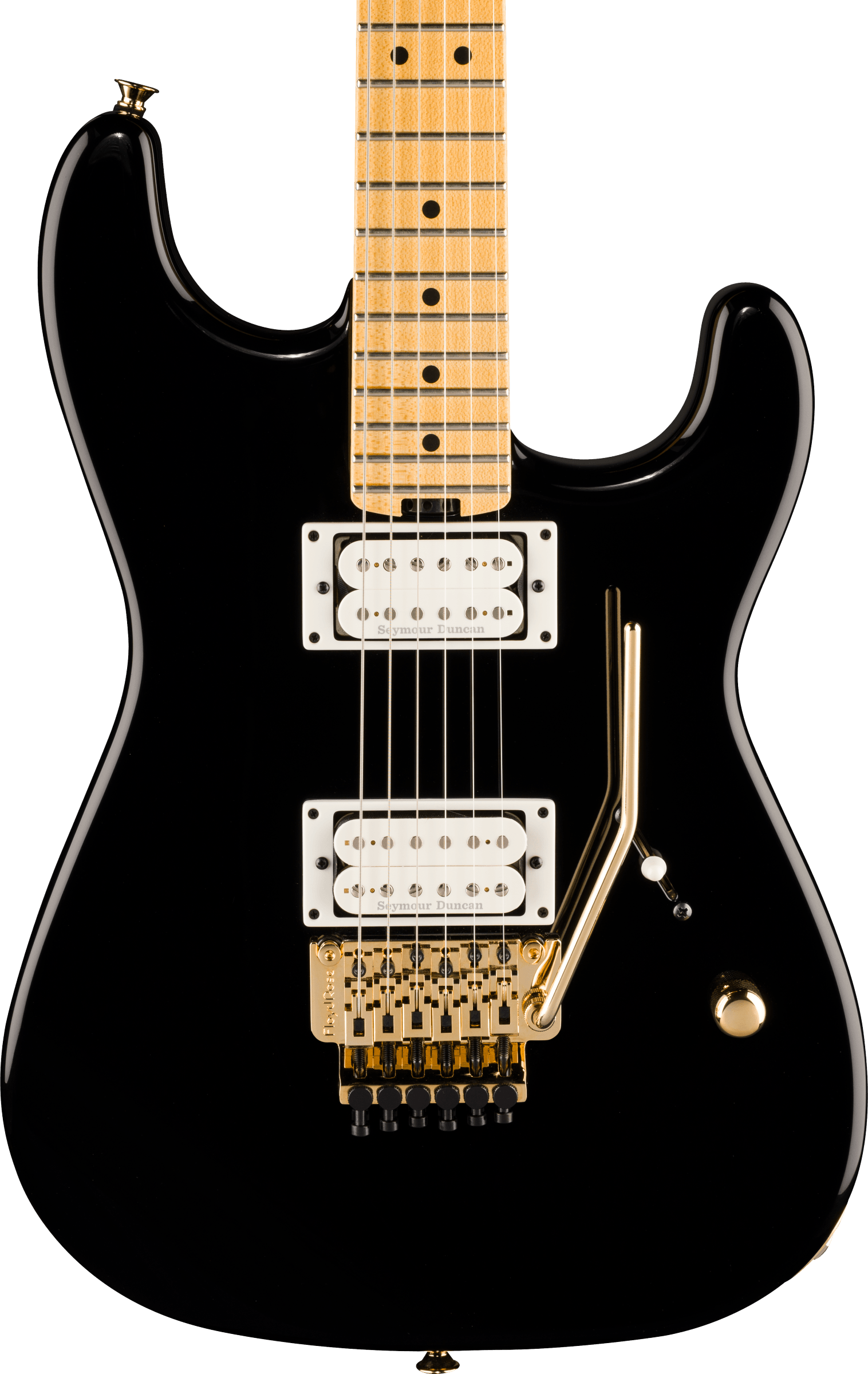

The custom Seymour Duncan® JB/59 pickup combination with parchment bobbins offers ultimate sonic versatility – the neck position ‘59 delivers creamy vintage warmth for expressive leads and rich rhythms, while the bridge JB provides high-output bite for everything from soaring solos to crushing riffs. The one-piece quartersawn maple neck is carefully reproduced from authentic 1980 specifications and enhanced with graphite reinforcement, ensuring legendary feel with unmatched modern stability.

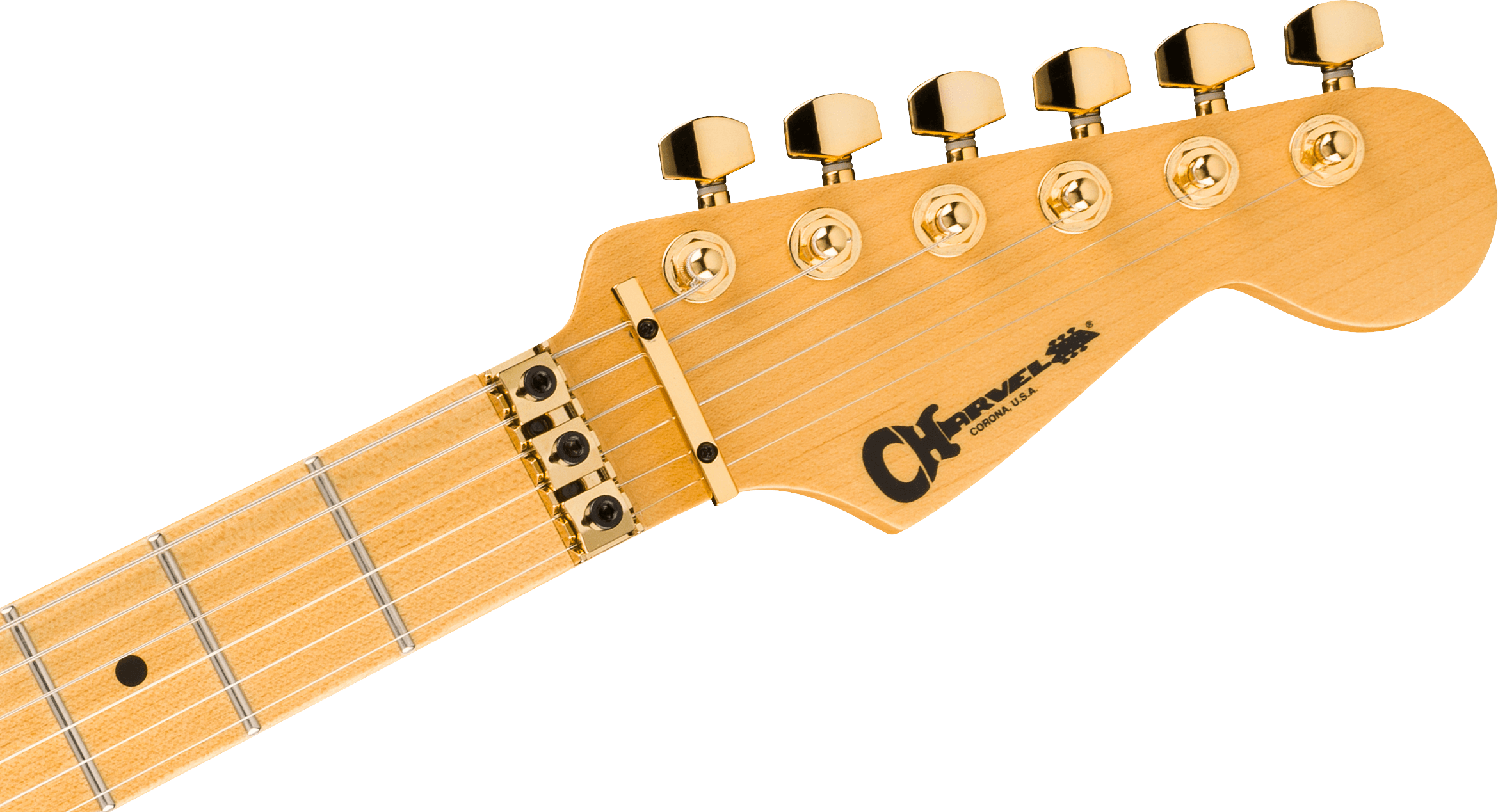

The innovative 12”-16” compound radius fingerboard starts comfortable for chording and opens up dramatically for effortless lead work, while 22 jumbo stainless steel frets provide exceptional note definition. Performance features include the truss rod adjustment wheel at the fingerboard’s end for lightning-fast setup changes, rounded fingerboard edges that feel like a glove, and Luminlay® side-dots for perfect position awareness.

The top-mount Floyd Rose 1000 series double-locking tremolo delivers rock-solid tuning stability with unlimited dive-bomb devastation and soaring flutter effects, while streamlined electronics featuring a single lo-friction volume pot and 5-way blade switch put pure tone at your fingertips. This is your gateway to sonic excellence – authentic 1980 Charvel craftsmanship meets tomorrow’s innovation in one irresistible package.

United States of America $2,799.99 EST. U.S. STREET
  • Specs
    General
    Model Number 2865041803
    Series American Neo-Classic Series
    Color Gloss Black
    Style 2 Humbucking
    Number of Strings 6
    Orientation Right-Hand
    Electronics
    Bridge Pickup Seymour Duncan® JB™ TB-4
    Neck Pickup Seymour Duncan® '59™ SH-1N
    Pickup Color Parchment
    Controls Volume (500K EVH® Bourns® Low Friction Pot)
    Pickup Switching 5-Position Blade: Position 1. Bridge, Position 2. Bridge Outer Coil and Neck Inner Coil, Position 3. Bridge and Neck, Position 4. Bridge Inner Coil and Neck Outer Coil, Position 5. Neck
    Pickup Configuration HH
    Body
    Body Finish Gloss
    Body Shape San Dimas® Style 1
    Body Material Alder
    Hardware
    Bridge Floyd Rose® 1000 Series Double-Locking Tremolo (Top-Mount)
    Hardware Finish Gold
    Tremolo Arm Floyd Rose®
    Tuning Machines Charvel®-Branded Die-Cast
    Pickguard None
    Control Knobs Dome-Style
    Switch Tip Parchment
    Neck
    Neck Material Quartersawn Maple
    Neck Construction Bolt-On with Graphite Reinforcement
    Neck Finish Natural Satin
    Neck Shape Speed Neck with Rolled Fingerboard Edges
    Neck Binding None - Rolled Fingerboard Edges
    Scale Length 25.5" (648 mm)
    Fingerboard Radius 12" to 16" Compound Radius (304.8 mm to 406.4 mm)
    Fingerboard Material Quartersawn Maple
    Number of Frets 22
    Fret Size Jumbo Stainless Steel
    Nut Material Floyd Rose® 1000 Series Locking
    Nut Width 1.6875" (42.86 mm)
    Position Inlays Black Dot
    Side Dots Luminlay®
    Truss Rod Nut Heel-Mount Truss Rod Adjustment Wheel
    String Trees Retainer Bar
    Headstock Licensed Fender® Stratocaster®
    Neck Plate 4-Bolt Serialized
    Miscellaneous
    Strings Nickel Plated Steel (.009-.042 Gauges)
    Strap Buttons Standard
    Case/Gig Bag Included Charvel® Multi-Fit Hardshell Gig Bag (P/N 0994742100)
    Other Features Luminlay® Side Dots
