The Pro-Mod Series continues upon Charvel’s storied legacy of innovative excellence in high-performance guitar design, offering the latest technology and top-notch features that modern players need. An ideal instrument for dazzling high-speed playing, the San Dimas® Style 1 HH FR E boasts scorching sound, stunning style and grin-inducing playing feel and performance.
Crafted from alder, the body is coupled with a bolt-on maple neck featuring a pair of graphite reinforcement rods to resist bending and warping under environmental stresses. The speed neck profile is designed for lightning fast playing and completely unhindered position shifts, while the comfortably rolled fingerboard edges provide the broken-in feel of an instrument with plenty of playing miles on it, and plenty more to go. Perfect for faster tempos, the 12"-16" compound radius ebony fingerboard hosts 22 jumbo frets and white dot inlays. For regularly touring musicians, a heel-mount truss rod adjust thumbwheel is a must, allowing for quick and convenient neck relief tweaks.

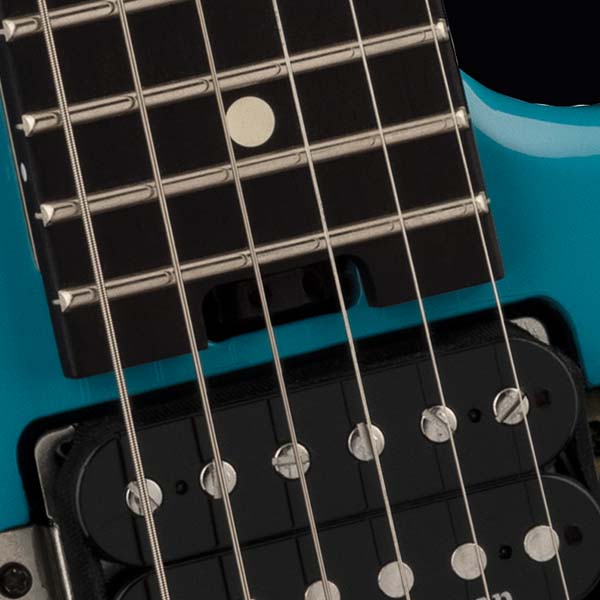

High-output Seymour Duncan® JB and Seymour Duncan '59™ humbucking pickups are directly mounted to the body, cranking out high octane rock ‘n’ roll tone with plenty of sweet overtones. The volume control conceals a push/pull coil split to have even more tonal variations on tap while the no-load tone control operates like a standard tone control from positions one through nine, removing itself from the circuit at position ten for transparent sound that lets the full natural voice of the guitar shine through. Dive to rumbling depths or add a well-placed rising harmonic without sacrificing your tuning with the Floyd Rose® 1000 Series double-locking tremolo bridge system.
Alder San Dimas® Style 1 BodyBolt-on Maple Neck with Graphite ReinforcementUnique Charvel Back Neckshape12"-16" Compound Radius Ebony Fingerboard with 22 Jumbo FretsHeel-Mount Truss Rod Adjustment WheelSeymour Duncan® JB™ TB-4 & Seymour Duncan '59™ SH-1N Pickups3-Way Blade, Push/Pull Volume Control & No-Load Tone ControlFloyd Rose®1000 Series Double-Locking Tremolo Bridge System
Model Number 2965841591 Series Pro-Mod Color Miami Blue Number of Strings 6 Orientation Right-Hand
Bridge Pickup Seymour Duncan® JB™ TB-4 Neck Pickup Seymour Duncan® '59™ SH-1N Pickup Color Black Controls Volume (Push/Pull Coil Split), No-Load Tone Pickup Switching 3-Position Blade: Position 1. Bridge Pickup, Position 2. Both Inner Coils, Position 3. Neck Pickup - (Split Engaged) - Position 1. Bridge Outer Coil, Position 2. Both Outer Coils, Position 3. Neck Outer Coil Pickup Configuration HH
Bridge Floyd Rose® 1000 Series Double-Locking Tremolo (Recessed) Hardware Finish Gold Tremolo Arm Floyd Rose® 1000 Series Locking Tuning Machines Charvel®-Branded Die-Cast Pickguard None Control Knobs Knurled Flat-Top Switch Tip Black Saddle Height Wrench N/A
Neck Material Maple Neck Construction Bolt-On with Graphite Reinforcement Neck Finish Hand-Rubbed Satin Urethane Neck Shape Speed Neck with Rolled Fingerboard Edges Neck Binding None - Rolled Fingerboard Edges Scale Length 25.5" (64.77 cm) Fingerboard Radius 12"-16" Compound Radius (304.8 mm to 406.4 mm) Fingerboard Material Ebony Number of Frets 22 Fret Size Jumbo Nut Material Floyd Rose® 1000 Series Locking Nut Width 1.6875" (42.86 mm) Position Inlays White Dot Side Dots White Truss Rod Nut Heel-Mount Truss Rod Adjustment Wheel String Trees Floyd Rose® Retainer Bar Headstock Licensed Fender® Stratocaster® Neck Plate 4-Bolt Serialized
Strings Nickel Plated Steel (.009-.042 Gauges) Strap Buttons Standard
