Pro-Mod Series

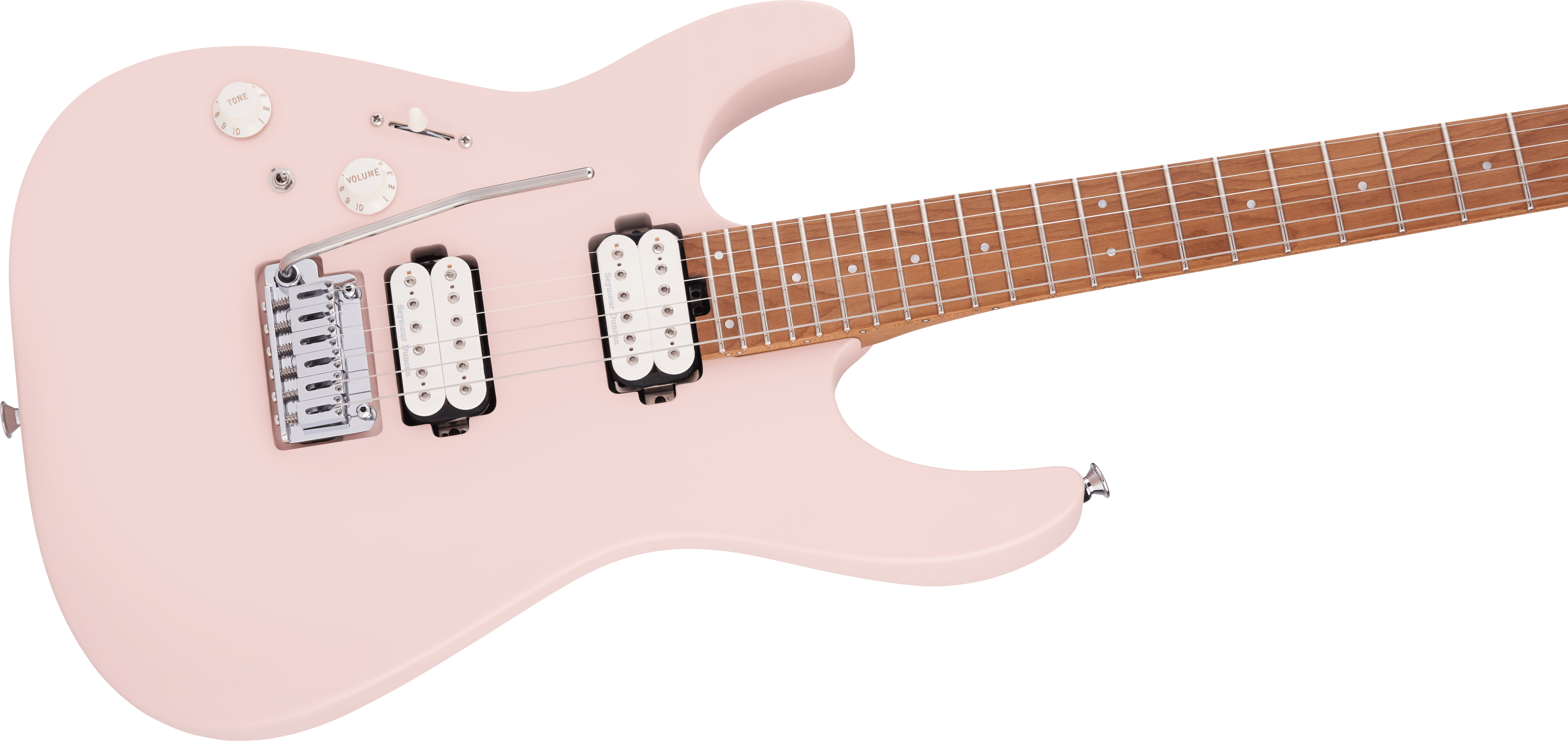

Charvel® turns modern high performance on its head with the new Pro-Mod DK24 HH 2PT CM LH, a brazen instrument for the progressive left-handed guitarist searching for an unparalleled spectrum of sound.
-
Overview
Featuring a sculpted shredder’s cut heel and a scalloped lower back bout for easy upper access to the fingerboard, the alder body in the classic Dinky® style is cloaked in either a Gloss Black or Satin Shell Pink finish.
The bolt-on caramelized maple “speed” neck features graphite reinforcement, silky-smooth hand-rubbed satin urethane back finish, heel-mount truss rod adjustment wheel and Luminlay® side dots. Its 12”-16” compound radius caramelized maple fingerboard features comfortable rolled edges, 24 jumbo frets, pearloid dot inlays and Graph Tech® TUSQ® XL nut.
Brimming with versatility courtesy of the mini two-way toggle switch for series and parallel, this lefty guitar features an HH pickup configuration consisting of a direct mount custom Seymour Duncan® Full Shred™ TB-10 bridge pickup and direct mount custom Seymour Duncan Alnico II Pro™ APH-1N neck pickup. The bridge pickup radiates a crisp top-end with low-end articulation, while the neck pickup has incredible range with soaring highs and silky lows.

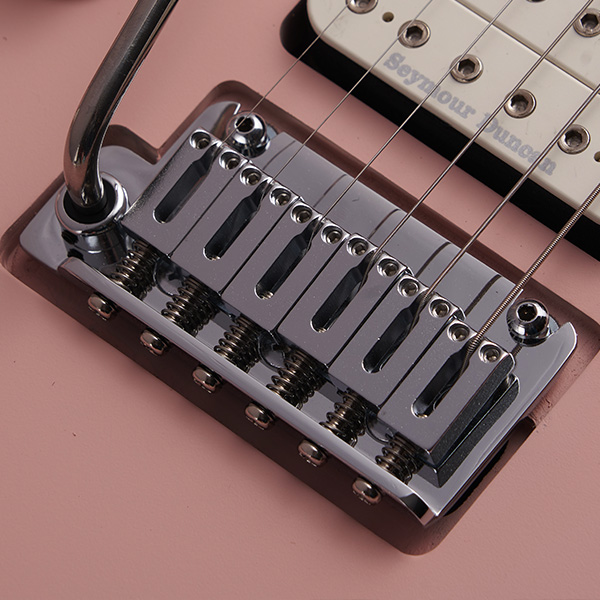

Blending sophisticated style with assertive tone, the Pro-Mod DK24 HH 2PT CM LH also offers premium modern features such as a five-way blade pickup switch, Stratocaster®-style skirt knobs for the volume (with 500K EVH® Bourns® low friction potentiometer) and no-load tone controls, Gotoh® Custom 510 recessed tremolo bridge, Charvel-branded locking tuners, chrome hardware and more.
-
Features
Alder Dinky™ BodyBolt-on Caramelized Maple Neck with Graphite ReinforcementScalloped Lower Back Bout12"-16" Compound Radius Caramelized Maple FingerboardCustom Seymour Duncan® Full Shred™ SH-10B and Custom Seymour Duncan Alnico II Pro™ APH-1N Pickups5-Way Blade, Volume Control with 500K EVH Bourns® Low Friction Potentiometer & No-Load Tone ControlLuminlay® Side DotsHeel-Mount Truss Rod Adjustment WheelGotoh® Custom 510 Tremolo
-
Specs
General
Model Number 2961411519 Series Pro-Mod Color Satin Shell Pink Number of Strings 6 Orientation Left-Hand Electronics
Bridge Pickup Seymour Duncan® Full Shred™ TB-10 Neck Pickup Custom Seymour Duncan® Alnico II Pro™ APH-1N Pickup Color Parchment Controls Volume (with 500K EVH® Bourns® Low Friction Potentiometer), No-Load Tone Pickup Switching 5-Position Blade: Position 1: Full Bridge Pickup, Position 2: Both Outer Coils, Position 3: Bridge and Neck Pickup, Position 4: Both Inside Coils, Position 5: Full Neck Pickup Special Electronics 2-Way Mini Toggle (Down - Series/Up - Parallel) Pickup Configuration HH Hardware
Bridge Gotoh® Custom 510 Tremolo Hardware Finish Chrome Tremolo Arm Gotoh® Tremolo Block Steel Tuning Machines Charvel®-Branded Die-Cast Locking Control Knobs Stratocaster®-Style Skirt Switch Tip Parchment Saddle Height Wrench Yes Neck
Neck Material Caramelized Maple Neck Construction Bolt-On with Graphite Reinforcement Neck Finish Hand-Rubbed Satin Urethane Neck Shape Speed Neck with Rolled Fingerboard Edges Neck Binding None - Rolled Fingerboard Edges Scale Length 25.5" (64.77 cm) Fingerboard Radius 12"-16" Compound Radius (304.8 mm to 406.4 mm) Fingerboard Material Caramelized Maple Number of Frets 24 Fret Size Jumbo Nut Material Graph Tech® TUSQ® XL Nut Width 1.6875" (42.86 mm) Position Inlays 4mm Pearloid Dot Side Dots Luminlay® Truss Rod Nut Heel-Mount Truss Rod Adjustment Wheel Truss Rod Wrench Yes String Trees Fender® Standard String Guide Headstock Licensed Fender® Stratocaster® Neck Plate None - 4-Bolt Sculpted Heel Miscellaneous
Strings Nickel Plated Steel (.009-.042 Gauges) Strap Buttons Standard Other Features Beveled Jack -
Pickup Switching
