San Dimas® Style 2

Pro-Mod San Dimas® Style 2-7 HH HT E Ash
2963951574 / Charcoal Gray
Pro-Mod San Dimas® Style 2-7 HH HT E Ash
2963951574 / Charcoal Gray

Pedigreed shredders from the '80s, Pro-Mod San Dimas® guitars are packed with high-speed playability and innovative design elements. Tweaked and refined for modern players looking for an even wider sonic palette, the San Dimas Style 2-7 HH HT E Ash marks the only seven-string axe in the current lineup and is versatile tonal machine.

$1,241.37
  • Overview

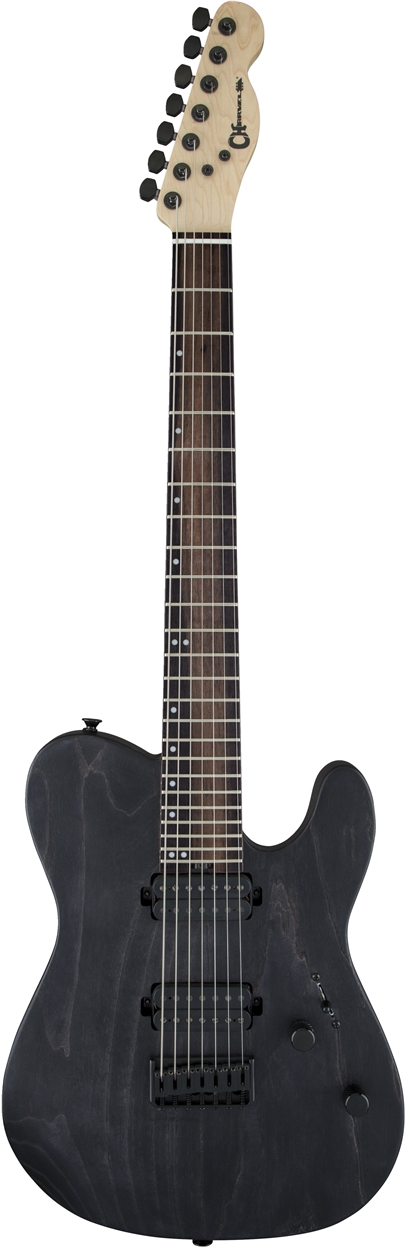

    This menacing 7-string model features an ash body coupled with a bolt-on maple neck featuring graphite reinforcement rods for rock-solid stability, regardless of the ravages of the road and climate. Engineered for delightful and highly-expressive playing, this guitar has a speed neck profile with hand-rubbed urethane back finish and a 12”-16” compound radius aged ebony fingerboard with 24 jumbo frets and offset dot inlays. A convenient heel-mount spoke wheel allows for quick and easy truss rod tweaks, even in the middle of a set.

    Hot-rodded for unparalleled performance, articulate tone and volcanic sound, it is also equipped with a high-output Seymour Duncan® Nazgûl humbucking bridge pickup and a Seymour Duncan Sentient humbucking neck pickup, controlled with a three-way blade. The volume control hides a push/pull coil split for even more highly useful tonal variations, ideal for everything from a biting lead sound to thick, chunky rhythm work, while the no-load tone control operates like a standard tone control from positions one through nine, removing itself from the circuit at position ten for transparent sound, letting the full natural voice of the guitar shine through. A Charvel® HT7 string-through-body hardtail bridge provides endless sustain with laser intonation.

    This hardtail beast is dressed to the nines in a Charcoal Gray finish that showcases the natural wood grain, and capped off with all-black hardware.

  • Features
    Ash Body
    Bolt-on Maple Neck with Graphite Reinforcement
    Scalloped Lower Bout
    Shredder's Cut Heel
    12"-16" Compound Radius Aged Ebony Fingerboard
    Direct Mount Seymour Duncan Nazgul and Sentient Pickups
    Heel-Mount Truss Rod Adjustment Wheel
    Charvel HT7 String-Through-Body Hardtail Bridge
    Beveled Output Jack
    Offset Position Inlay
    Contoured Body
    3-Way Blade, Push/Pull Volume & No-Load Tone Controls
  • Specs
    General
    Model Number 2963951574
    Series Pro-Mod
    Color Charcoal Gray
    Number of Strings 7
    Orientation Right-Hand
    Electronics
    Bridge Pickup Direct Mount Seymour Duncan® Nazgul
    Neck Pickup Seymour Duncan® Sentient
    Controls Volume (Push/Pull Coil Split), No-Load Tone
    Pickup Switching 3-Position Blade: Position 1. Bridge Pickup, Position 2. Both Inner Coils, Position 3. Neck Pickup - (Split Engaged) - Position 1. Bridge Outer Coil, Position 2. Both Outer Coils, Position 3. Neck Outer Coil
    Pickup Configuration HH
    Body
    Body Finish Gloss
    Body Shape San Dimas® Style 2
    Body Material Ash
    Hardware
    Bridge Charvel® HT7 String-Through-Body Hardtail
    Hardware Finish Black
    Tuning Machines Charvel® Branded Die-Cast Locking
    Pickguard None
    Pickup Covers Black
    Control Knobs Knurled Flat-Top
    Switch Tip Black
    Neck
    Neck Material Maple
    Neck Construction Bolt-On with Graphite Reinforcement
    Neck Finish Hand-Rubbed Satin Urethane
    Neck Shape Speed Neck
    Neck Binding None - Rolled Fingerboard Edges
    Scale Length 25.5" (648 mm)
    Fingerboard Radius 12"-16" Compound Radius (304.8 mm to 406.4 mm)
    Fingerboard Material Aged Ebony
    Number of Frets 24
    Fret Size Jumbo
    Nut Width 1.75" (44.45 mm)
    Position Inlays Offset White Dot
    Truss Rod Nut Heel-Mount Truss Rod Adjustment Wheel
    Headstock Licensed Fender® Telecaster®
    Neck Plate None
    Miscellaneous
    Strings Nickel Plated Steel .009-.042 Gauges
