Dinky™ (DK)
Charvel’s Pro-Mod DK24 HSS FR M is a perfect fusion of elegance and high performance, designed for a new breed of player whose musical vision and versatility knows no boundaries.
-
Overview
Featuring a sculpted shredder's cut heel and scalloped lower back bout for comfortable, unencumbered upper fret access, the alder Dinky™ body is paired with a graphite-reinforced bolt-on maple neck for rock-solid stability. The “speed” neck features a silky-smooth hand-rubbed satin urethane finish on the back for sublime playability, and a heel-mount truss rod adjustment wheel for convenient neck relief tweaks. Built for fast playing speeds, the 12”-16” compound radius maple fingerboard features comfortable rolled edges, 24 jumbo frets and black offset dot inlays.
An HSS pickup configuration consisting of a Seymour Duncan® Full Shred™ SH-10B bridge pickup, Seymour Duncan Flat Strat® SSL-6 single-coil middle pickup and Seymour Duncan Flat Strat SSL-6 RWRP single-coil neck pickup hits with plenty of focused humbucker grit and springy vintage snap. Dial in the tonal spectrum that best suits your playing with five-way blade switching, single volume control (with 500K EVH® Bourns™ low friction potentiometer) and a no-load tone control that operates like a standard tone control from positions one through nine, removing itself from the circuit at position ten for transparent sound that lets the full natural voice of the guitar shine through. The recessed Floyd Rose® 1000 Series double-locking tremolo bridge system provides superior tuning stability and radical pitch-raising capability.

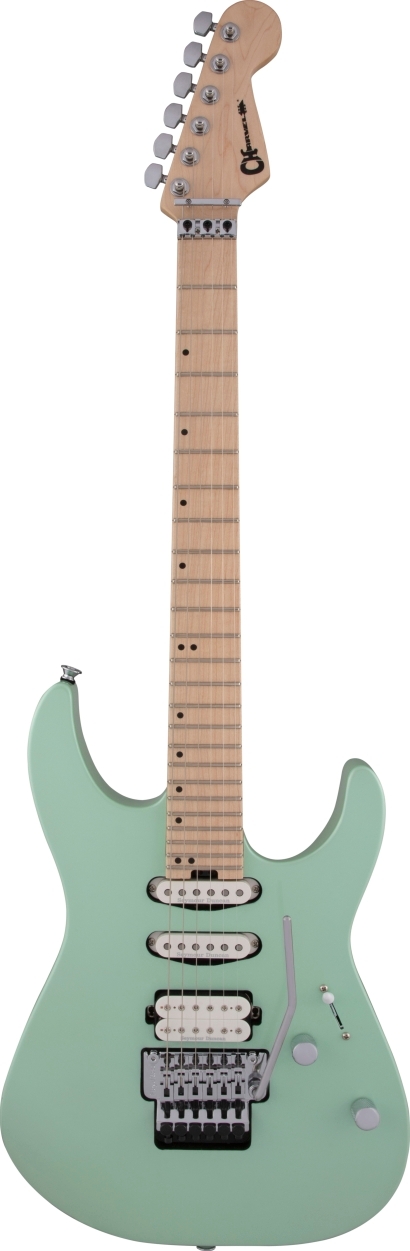

Dressed to impress, the all-new Pro-Mod DK24 HSS FR M is finished in Specific Ocean with chrome hardware.
-
Features
Alder Dinky™ Body
Scalloped Lower Back Bout
Shredder's Cut Heel
12"-16" Compound Radius Maple Fingerboard with Rolled Edges
Seymour Duncan® Full Shred™ SH-10B bridge, Seymour Duncan Flat Strat® SSL-6 single-coil middle and Seymour Duncan Flat Strat SSL-6 RWRP single-coil neck pickups
5-Way Blade, Volume Control with 500K EVH Bourns® Low Friction Potentiometer & No-Load Tone Control
Floyd Rose®1000 Series Double-Locking Tremolo Bridge System
Heel-Mount Truss Rod Adjustment Wheel -
Specs
General
Model Number 2969436549 Series Pro-Mod Color Specific Ocean Number of Strings 6 Orientation Right-Hand Electronics
Bridge Pickup Seymour Duncan® Full Shred™ SH-10B Middle Pickup Seymour Duncan® Flat Strat® SSL-6 Single-Coil Neck Pickup Seymour Duncan® Flat Strat® SSL-6 RWRP Single-Coil Pickup Color White Controls Volume (500K EVH® Bourns® Low Friction Pot), No-Load Tone Pickup Switching 5-Position Blade: Position 1. Full Bridge Pickup, Position 2. Bridge Inner Coil and Middle Pickup, Position 3. Bridge Outer Coil and Neck Pickup, Position 4. Middle and Neck Pickup, Position 5. Full Neck Pickup Pickup Configuration HSS Hardware
Bridge Floyd Rose® 1000 Series Double-Locking Tremolo (Recessed) Hardware Finish Chrome Tremolo Arm Floyd Rose® 1000 Series Locking Tuning Machines Charvel®-Branded Die-Cast Pickguard None Control Knobs Dome-Style Switch Tip White Neck
Neck Material Maple Neck Construction Bolt-On with Graphite Reinforcement Neck Finish Hand-Rubbed Satin Urethane Neck Shape Speed Neck with Rolled Fingerboard Edges Neck Binding None - Rolled Fingerboard Edges Scale Length 25.5" (648 mm) Fingerboard Radius 12"-16" Compound Radius (304.8 mm to 406.4 mm) Fingerboard Material Maple Number of Frets 24 Fret Size Jumbo Nut Material Floyd Rose® 1000 Series Locking Nut Width 1.6875" (42.86 mm) Position Inlays Offset Black Dot Truss Rod Nut Heel-Mount Truss Rod Adjustment Wheel String Trees Floyd Rose® Retainer Bar Headstock Licensed Fender® Stratocaster® Neck Plate None - 4-Bolt Sculpted Heel Miscellaneous
Strings Nickel Plated Steel (.009-.042 Gauges) Strap Buttons Standard -
Pickup Switching
-
Gallery
