Dinky™ (DK)
Charvel's Pro-Mod DK24 HH HT E is a perfect fusion of elegance and high performance, designed for a new breed of player whose musical vision and versatility knows no boundaries.
-
Overview

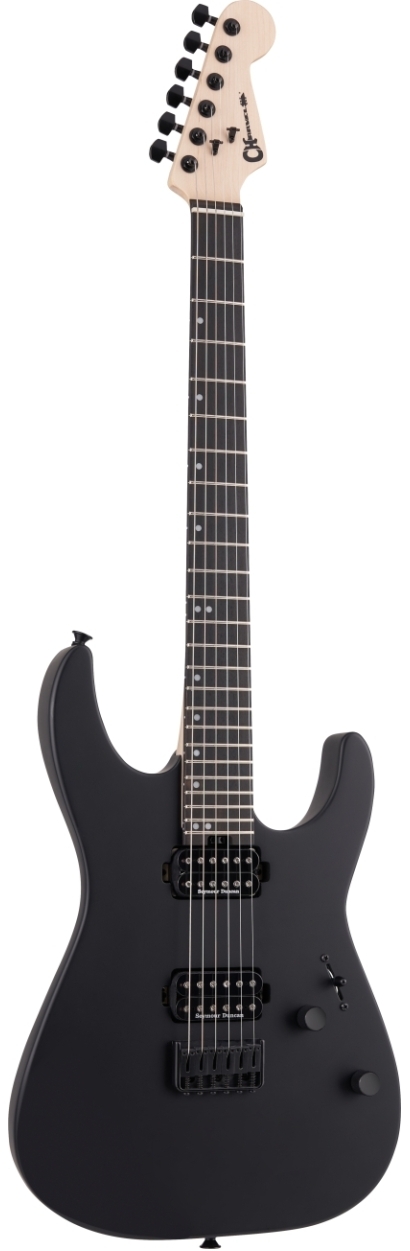

Loaded with premium features, this DK24 model features a sleek Dinky® body constructed from alder with a sculpted shredder's cut heel and scalloped lower back bout for seamless access to the upper registers. The bolt-on maple neck features graphite reinforcement for rock-solid stability, a silky-smooth hand-rubbed satin urethane finish on the back of the neck for sublime playability, and a conveniently located heel-mount truss rod adjustment wheel for neck relief tweaks on the fly. Designed for speed, the 12"-16" compound radius ebony fingerboard features comfortable rolled edges, 24 jumbo frets and offset pearloid dot inlays.
This axe features an HH pickup configuration consisting of a direct mount Seymour Duncan® Full Shred™ SH-10B bridge pickup and direct mount Seymour Duncan Alnico II Pro™ APH-1N neck pickup. The bridge pickup radiates a crisp top-end with low-end articulation, while the neck pickup has incredible range with soaring highs and silky lows.
Other premium modern features include a five-way blade pickup switch, dome-style knobs for the volume (with 500K EVH® Bourns® low friction potentiometer) and no-load tone controls, Charvel® HT6 string-through-body hardtail bridge, Charvel-branded die-cast locking tuners and more.
Blending sophisticated style with assertive tone, Pro-Mod DK24 HH HT E comes in Satin Black with black hardware.
-
Features
Alder Dinky™ BodyBolt-on Maple Neck with Graphite ReinforcementShredder's Cut Heel12"-16" Compound Radius Ebony Fingerboard with Rolled EdgesSeymour Duncan® Full Shred™ SH-10B and Seymour Duncan Alnico II Pro™ APH-1N PickupsHeel-Mount Truss Rod Adjustment WheelCharvel® HT6 String-Through-Body Hardtail Bridge5-Way Blade, Volume Control with 500K EVH Bourns® Low Friction Potentiometer & No-Load Tone Control
-
Specs
General
Model Number 2969851568 Series Pro-Mod Color Satin Black Number of Strings 6 Orientation Right-Hand Electronics
Bridge Pickup Seymour Duncan® Full Shred™ SH-10B Neck Pickup Seymour Duncan® Alnico II Pro™ APH-1N Pickup Color Black Controls Volume (500K EVH® Bourns® Low Friction Pot), No-Load Tone Pickup Switching 5-Position Blade: Position 1. Full Bridge Pickup, Position 2. Bridge Inner Coil, Position 3. Both Inner Coils, Position 4. Neck Inner Coil, Position 5. Full Neck Pickup Pickup Configuration HH Hardware
Bridge Charvel® HT6 String-Through-Body Hardtail Hardware Finish Black Tuning Machines Charvel®-Branded Die-Cast Locking Control Knobs Dome-Style Switch Tip Black Saddle Height Wrench Yes Neck
Neck Material Maple Neck Construction Bolt-On with Graphite Reinforcement Neck Finish Hand-Rubbed Satin Urethane Neck Shape Speed Neck with Rolled Fingerboard Edges Neck Binding None - Rolled Fingerboard Edges Scale Length 25.5" (64.77 cm) Fingerboard Radius 12"-16" Compound Radius (304.8 mm to 406.4 mm) Fingerboard Material Ebony Number of Frets 24 Fret Size Jumbo Nut Material Black Plastic Nut Width 1.6875" (42.86 mm) Position Inlays Offset Pearloid Dot Truss Rod Nut Heel-Mount Truss Rod Adjustment Wheel Truss Rod Wrench Yes String Trees Fender® Standard String Guide Headstock Licensed Fender® Stratocaster® Neck Plate None - 4-Bolt Sculpted Heel Miscellaneous
Strings Nickel Plated Steel (.009-.042 Gauges) Strap Buttons Standard Case/Gig Bag Optional Charvel® Style 1/2 Economy Case (p/n 099-0612-100); Optional Charvel® Multi-Fit Gig Bag (p/n 299-1414-006) Other Features Beveled Jack -
Pickup Switching
